D42mm 40.5KN Full Complement Cylindrical Roller Bearings

Name: D42mm 405KN Full Complement Cylindrical Roller Bearings
Brand: NEKIB OR FUMSB
Price: 0.1 USD

Quality D42mm 40.5KN Full Complement Cylindrical Roller Bearings wholesale

Brand Name : NEKIB OR FUMSB

Model Number : SL045004pp

Certification : ISO9001,IATF16949

Place of Origin : CHANGZHOU,CHINA

MOQ : 100

Price : 0.1-100$ one piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300kpcs,30days

Delivery Time : 5-8 work days

Packaging Details : Roll or single box

Name : Full Complement Cylindrical Roller Bearings

Inner Ring : Full Coplement Needle Roller Bearing With Or Without Inner Ring

Apilication : Hydraulic Pump

Tolerance : ABEC1,ABEC3,ABEC5

Precision Rating : P0,P6,P5,P4

Clearance : C0,C2,C3,C4,C5

Material : Chrome steel

Spherical : Aligning Bearings

Type : double row roller bearing

Feature : precision roller bearing

Contact Now

Full Complement Cylindrical Roller Bearings SL045004pp for heavy machinery

Product Application:

Rexroth GFT 110 GFT80 Hydraulic Reducers For Concrete Mixers
Excavators Rexroth Final Winch Drive Gearbox GFT 110 GFT80 Reducers
GFT80 GFT160 Reducer Gearbox Rexroth Hydraulic Gearbox For Excavators

GFT walking reducer is widely used in rotary drilling rig walking, the main winch, small size, compact structure, large output torque, easy installation, direct connection with the walking tire

Drawings and parameter:(parts)

Full complement cylindrical roller bearing with snap ring grooves
Designation	Designation	MASS	Dimensions				basic load ratings
FUMS.REF	SKF.REF	KG	d(mm)	D(mm)	B(mm)	C(mm)	DYN.(KN)	STAT.(KN)
SL045004PP	NNF5004 ADA 2LSV	0.2	20	42	30	29	40.5	49
SL045005PP	NNF5005 ADA 2LSV	0.24	25	47	30	29	44.5	58
SL045006PP	NNF5006 ADA 2LSV	0.37	30	55	34	33	50	67
SL045007PP	NNF5007 ADA 2LSV	0.48	35	62	36	35	63	88
SL045008PP	NNF5008 ADA 2LSV	0.56	40	68	38	37	76	103
SL045009PP	NNF5009 ADA 2LSV	0.7	45	75	40	39	92	130
SL045010PP	NNF5010 ADA 2LSV	0.76	50	80	40	39	97	142
SL045011PP	NNF5011 ADA 2LSV	1.18	55	90	46	45	115	175
SL045012PP	NNF5012 ADA 2LSV	1.26	60	95	46	45	120	189
SL045013PP	NNF5013 ADA 2LSV	1.33	65	100	46	45	125	203
SL045014PP	NNF5014 ADA 2LSV	1.87	70	110	54	53	168	265
SL045015PP	NNF5015 ADA 2LSV	1.96	75	115	54	53	194	300
SL045016PP	NNF5016 ADA 2LSV	2.71	80	125	60	59	203	325
SL045017PP	NNF5017 ADA 2LSV	2.83	85	130	60	59	211	350
SL045018PP	NNF5018 ADA 2LSV	3.71	90	140	67	66	305	510
SL045019PP	NNF5019 ADA 2LSV	3.88	95	145	67	66	315	530
SL045020PP	NNF5020 ADA 2LSV	3.91	100	150	67	66	330	550
SL045022PP	NNF5022 ADA 2LSV	6.57	110	170	80	79	395	680
SL045024PP	NNF5024 ADA 2LSV	7.04	120	180	80	79	410	740
SL045026PP	NNF5026 ADA 2LSV	10.5	130	200	95	94	540	960
SL045028PP	NNF5028 ADA 2LSV	11.1	140	210	95	94	610	1100
SL045030PP	NNF5030 ADA 2LSV	13.3	150	225	100	99	710	1260
SL045032PP	NNF5032 ADA 2LSV	16.6	160	240	109	108	740	1360
SL045034PP	NNF5034 ADA 2LSV	22.6	170	260	122	121	960	1750
SL045036PP	NNF5036 ADA 2LSV	30.1	180	280	136	135	1140	2130
SL045038PP	NNF5038 ADA 2LSV	31.5	190	290	136	135	1160	2210
SL045040PP	NNF5040 ADA 2LSV	40.8	200	310	150	149	1350	2600
SL04130PP	319426 DA-2LS	7.5	130	190	80	79	430	790
SL04140PP	319428 DA-2LS	8	140	200	80	79	445	840
SL04150PP	319430 DA-2LS	8.4	150	210	80	79	465	920
SL04160PP	319432 DA-2LS	8.8	160	220	80	79	480	970
SL04170PP	319434 DA-2LS	9.3	170	230	80	79	490	1030
SL04180PP	319436 DA-2LS	9.8	180	240	80	79	500	1080
SL04190PP	319438 DA-2LS	12.7	190	260	80	79	520	1130
SL04200PP	319440 DA-2LS	13.2	200	270	80	79	540	1210

Other products Feature:

1	Hardness	60-64HRC
2	Seal type	N,NU,NJ,NF,NP,NUP,RN,RNU etc.cylindrical roller bearing
3	Precision grade	P0,P6,P5,P4 /ABEC-1,ABEC-3,ABEC-5,ABEC-7
4	Vibration level	V1 V2 V3
5	Cage type	Steel , Brass
6	Roller Bearings Feature	Long-life with high quality;
		Low-noise with strict controlling the quality of deep groove ball bearing;
		High-load by the advanced high-technical design;
		Competitive price, which has the most valuable;
		OEM service offered, to meet the customers'requirements.
7	Application	These bearings are widely used on papermaking industry, electric motors, railways, motorcycles, pumps, wind turbines and gearboxes, Machine Tools, Paper, Machinery, Semiconductor, Pumps, blowers, speed reducers,

Product pictures:

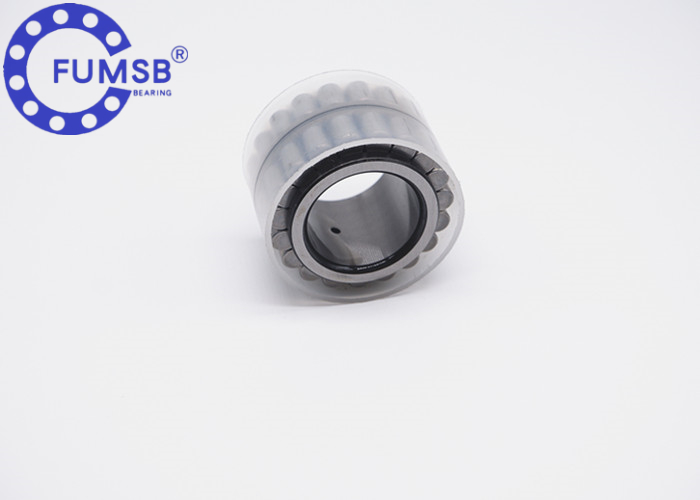

D42mm 40.5KN Full Complement Cylindrical Roller Bearings
